Notice: The picture shown is a sample temperature, it is for reference only, the actual product may vary.

reaStripe 10

protected
material paper/kapton/plastic
measuring points 10
protected yes
dishwasher suitable no
accuracy 1% above 100 °C +/- 1°C below 100°C
1-2 sec. 1-2 sek.

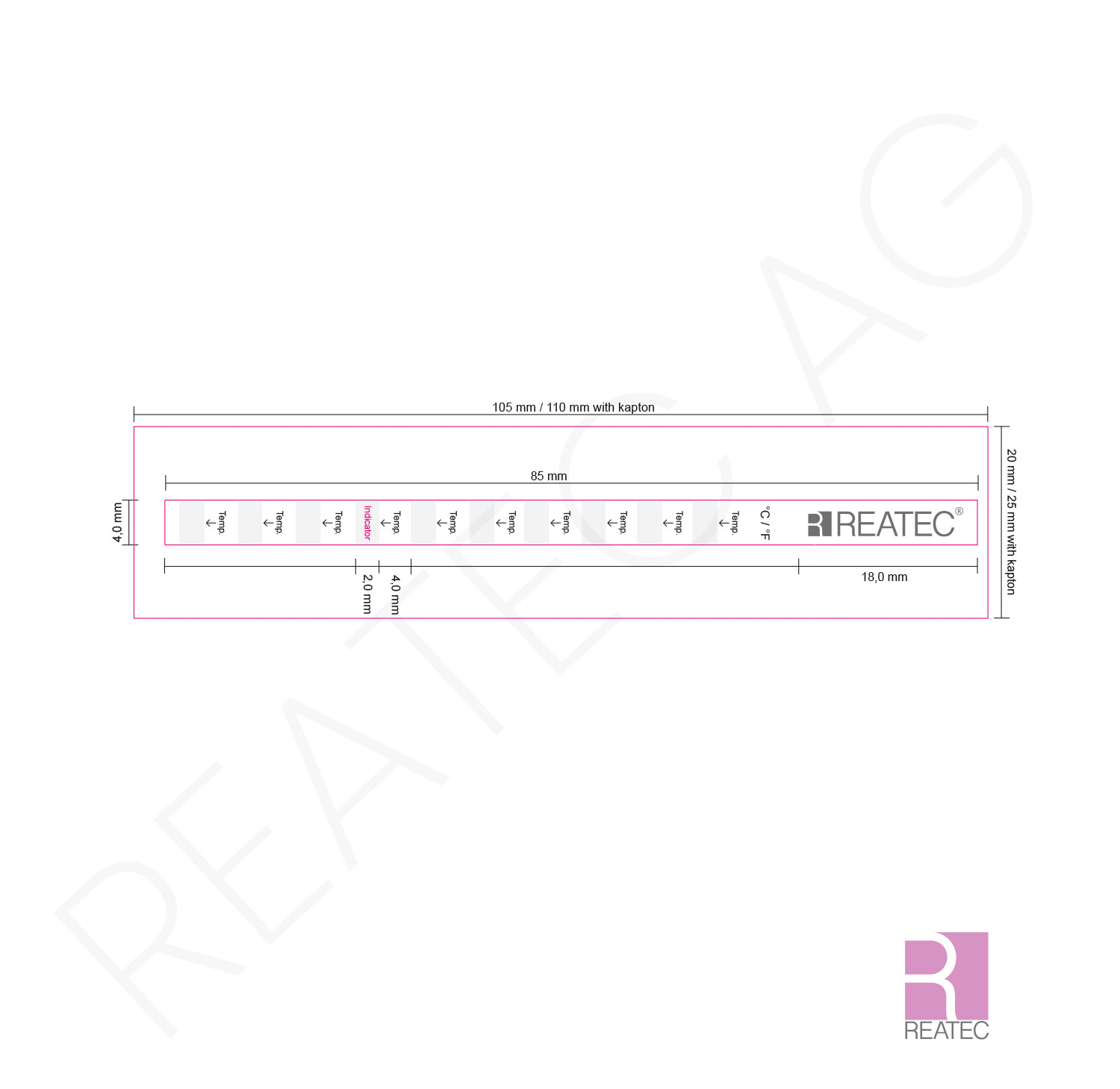

dimensions 20 x 105 mm
25x110 mm²

storage conditions cool, dry
customization possible yes

Our REATEC reaStripe 10 protected temperature indicators are based on a self-adhesive paper stripe, that is protected by a high-quality plastic film (lower temperatures) and a kapton film (higher temperatures). The temperature measuring points are applied to this stripe.

Available
Product No. °C °C °C °C °C °C °C °C °C °C
001.SXP.10 37,8 40,6 43,3 46 49 54,4 60 65,6 71 77
01A.SXP.10 54,4 60 65,6 71 77 82 88 93 99 104
002.SXP.10 82 88 93 99 104 110 116 121 127 132
02A.SXP.10 110 116 121 127 132 138 143 149 154 160
003.SXP.10 138 143 149 154 160 166 171 177 182 188
03A.SXP.10² 166 171 177 182 188 193 199 204 209 216
004.SXP.10² 193 199 204 209 216 224 232 243 249 254
041.SXP.10² 199 204 209 216 224 232 243 249 254 260
042.SXP.10² 224 227 231 235 242 245 249 255 261 264

Features

  • self-adhesive temperature measuring strips
  • 10 measuring points per indicator
  • permanent color change from grey to black
  • long-term monitoring on surfaces of any kind
  • narrow graduations available
  • cheap customization possible
  • Paper/Kapton/Plastic
  • for use in the environment of water
  • for use in the environment of oils
  • for use in the environment of greases
  • for use in the environment of solvents

Beschreibung

Temperature measuring stripes in use:

Our temperature measuring stripes are supplied as single (low temperatures) or double (higher temperatures) indicator stripes. A pack of 30 pieces corresponds to a quantity of 30 individual or 15 double indicators. They can be easily attached to the object, the temperature of which needs to be measured. Thanks to the plastic carrier, they are suitable for uneven and round objects.

On the temperature measuring stripes there is a scale with single, covered measuring points. As soon as a specified temperature is exceeded, the temperature measuring points in the respective boxes will change color within 1 to 2 seconds.

The color change is irreversible; once the temperature is exceeded, the temperature measuring points do not change back to the original color, even if the temperature drops again. Critical temperature fluctuations will be indicated even after a long time period e.g., during storage and transportation.

Sonstiges

This indicator is characterized by its water and oil repellency, strength, very good thermal conductivity and flexibility, and to achieve a fast and accurate response time even within difficult environment conditions, the measuring points are covered.

Product 001.SXP.10.XXX store in a refrigerator

² 03A - 042 protected with kapton film

Custom design on request
